Sc10- Act5C      due date:_________ NAME: ________________________ BL: ___
#
CRITERIA
PTS
COMMENTS

Above blanks above well filled out



5
1

TITLE PAGE (simple, not illustrated, see example)



5


2

TABLE OF CONTENTS (2 columns, see example)



5


3

TITLES are well presented: (center, CAPITAL,...



5

 no underlining)
4

LAYOUT (typed/neatly written, white, full just, comic14



5

 stapled, NO folder)
5

PAGINATION (right upper corner, 1,2,3,...)



5
(EXPERIMENTAL)
Introduction
Objective 5 pt _
Prediction 5 pt _
Materials 5 pt _
Procedure 5 pt _
*Precautions
Illustrations
Calculations 5 pt_
Observations:
   Meter Display 5 pt_
     Table 5 pt_
     Graphs 5 pt_
[Evaluation of BC
Hydro Bill Sc10 +5bonus]
Discussion Questions at end of Activity 10 pt __
6

MARGINS (2.5cm; 2.5cm; 2cm; 2 cm...)



5
7

SPACES (double; new title=new page,...)



5
8

INTRODUCTION (hypothesis, not personalised...)



10
9

CONTENT IS PERTINENT & INTERESTING?



25
10

CONTENT IS COMPLETE & IMPRESSIVE?



25
11

ILLUSTRATIONS are well chosen & labelled



15
12

ILLUSTRATIONS are colourful...



5
13

BIBLIOGRAPHY(indent, order, space as ex.)



5
14

BIBLIOGRAPHY is complete (accounted for)



5
15

TITLES AND SUB-TITLES (logical order)



5
16

ENGLISH without errors, no plagiarism (-1/error)



5
17

LENGTH OF REPORT(1000 - 1500 words)



10
18

SUB-TOTAL FOR REPORT:



150
19 BONUS FOR EARLY ENTRY PLAN AHEAD!!
20 LATE POINTS (-30pts/day X _____ days)
ACTUAL DATE RECEIVED:
TOTAL POINTS FOR WRITTEN REPORT:
150

REMINDER: BIG PROJECTS MUST MAKE IT TO SCHOOL ON DUE DATE OR BEFORE, WITH OR WITHOUT YOU &/OR YOUR PARTNER. PRESENTATIONS MUST ALSO BE DONE ON ASSIGNED DATE WITH OR WITHOUT YOUR PARTNER.   See www.dupuis.shawbiz.ca for more details on above. You may email report to nicole@dupuis.shawbiz.ca.   *** PLEASE INCLUDE THIS GRID WITH YOUR PROJECT.


TO PRINT THIS TABLE ONLY, CLICK ON

"FILE, PRINT from PAGE 1 to 1"

THIS SAVES PAPER!!







TITLE OF ACTIVITY







Presented to

Mrs. N. Dupuis







Student Name

Block

Reynolds Secondary School

Date due




TABLE OF CONTENTS


                            Introduction                         1

                            Objective                             2

                            Prediction                            2

                            Materials                             3

                            Procedure                            3

                           *Precautions                         3

                            Illustrations                         4

                            Calculations                         5

                            OBSERVATIONS:

                                Meters                             6-7

                                Table                                 8

                                Graphs                               9

                                BC Hydro Bill                     10

                            Discussion Questions         11-12

                            Bibliography                         13

i



INTRODUCTION

Here, you describe the topic of your activity. Whether the activity is on energy transformations of bouncing balls, identifying rocks and minerals or electric meters in your home, you might want to read the pages preceding the activity and summarize with definitions, facts, and findings.

Your introduction should not be personalized, i.e. include statements like "I will do my activity (or project) on... You will like my report... I did this, I did that..."

Have at least 10 good sentences, and/or 3 paragraphs. Remember to double space where possible, throughout your whole report. If in doubt, double space.


OBJECTIVE

In this activity, I will keep track of the amount of electrical energy my home uses in one week. (First sentence of Act 5C p94)



PREDICTION

Knowing that a family of 6 depending a lot on Central Gas uses up ~ 10 kWh per day and the same family which depends totally on Electricity for heating and appliances uses up to 75kWh per day, I predict that my home uses ____ kWh/day on the average because ....... (state facts such as: hot tub is on 24hrs/day, 2 loads of laundry per day, 10 people =10 showers/day...)


MATERIAL

pen, paper, hydro meter, ladder



PROCEDURE

1. I read the dials of the electric meter and recorded the numbers in order from left to right... (p94...)

2. I sketched the meters for each day.

3. I recorded my results on table 5.1 and plotted a graph of my results.



PRECAUTIONS

Ensure your stepladder is solid and secure.

Beware of branches poking you in the eyes...


ILLUSTRATIONS

you may decide to have a well-labelled collage of electrical

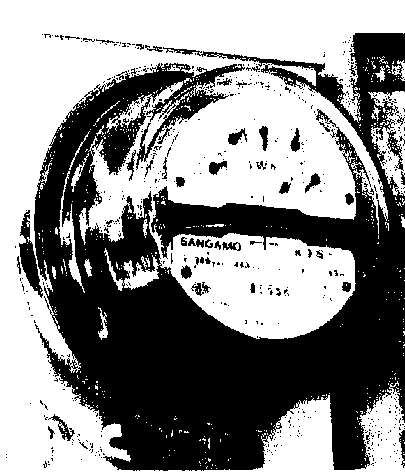

appliances and/or a picture of a meter...

remembertocolour, shade in or highlighttomakeitalittlecolourful!!


CALCULATIONS

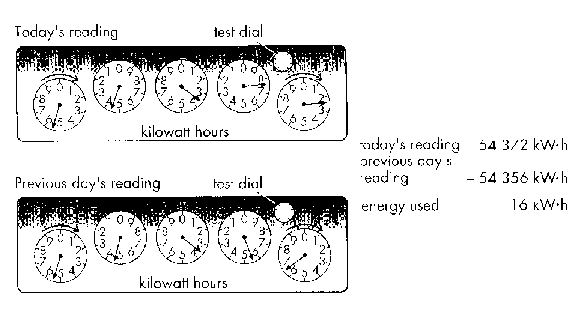

1. In order to find the readings, take the smallest digit on one side of the needle.


2. Energy consumed this day:

see book calculation - write it in here




3. Energy consumed to date: subtract the first reading (day 0) from the present day reading.


OBSERVATIONS

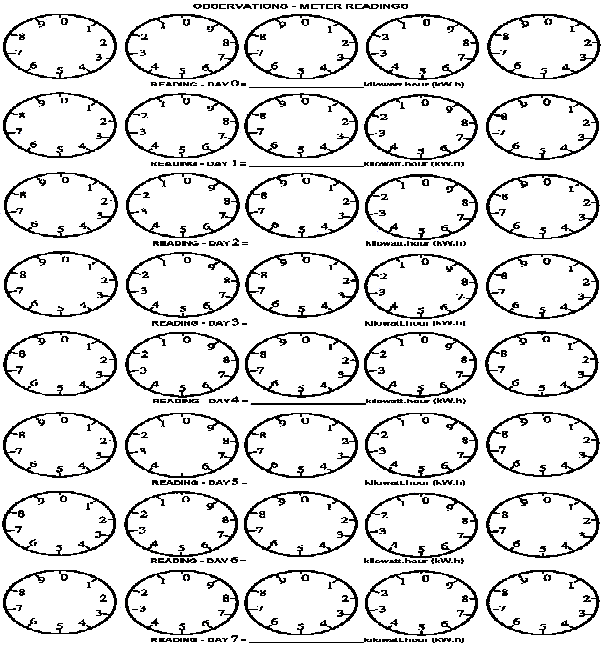

actual meter reading (click here, save and print)  dials filled in for every day!!!

OBSERVATIONS

Table 5.1 page 94: (EXAMPLE)

Day

#

 Date& time Meter reading

kWh

 kWh this day kWh to date Events affecting
kWh
0 4:15 54356 -- --
1 4:25 54489 133 133 laundry,0C
2 4:23 54643 154 287 baking, 2C
3 4:21 54768 125 412 4showers,6C
4 4:13 54903 135 547 4loads,4sh'rs
5 4:00 55033 130 677 6sh'rs,2loads
6 3:55 55183 150 827 baking,2loads
7 4:30 55326 143 970 6showrs,2C


OBSERVATIONS

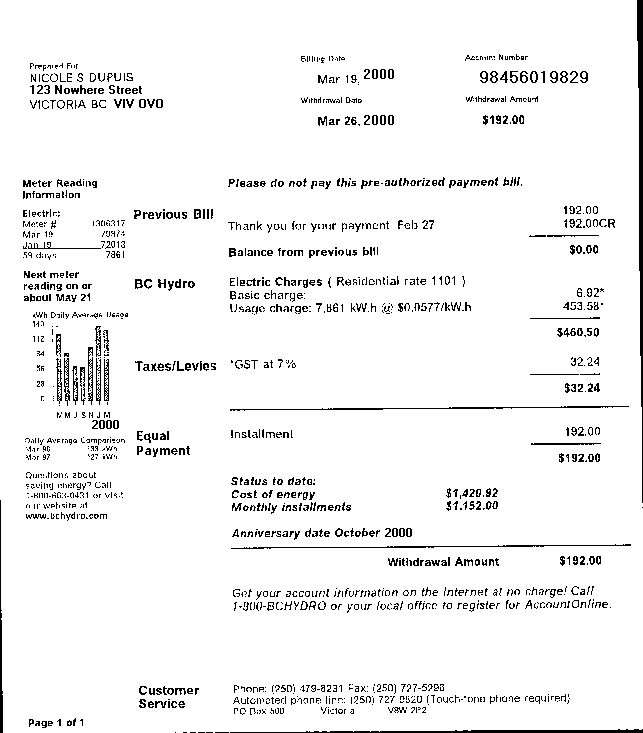

BC HYDRO BILL




CONCLUSION

Discussion Questions p 94 #1-7

1. .............

2.

3.

4.  this is your total kWh X 0.0577 cents

5.  this is #4 X 8 weeks

6.

7.


BIBLIOGRAPHY



Beckett, Peter et al. Science Probe 10. Scarborough, Ontario.

                             @ Nelson Canada, 1996. Pages 92 - 95 .
